Flexible.Easy.Safe.

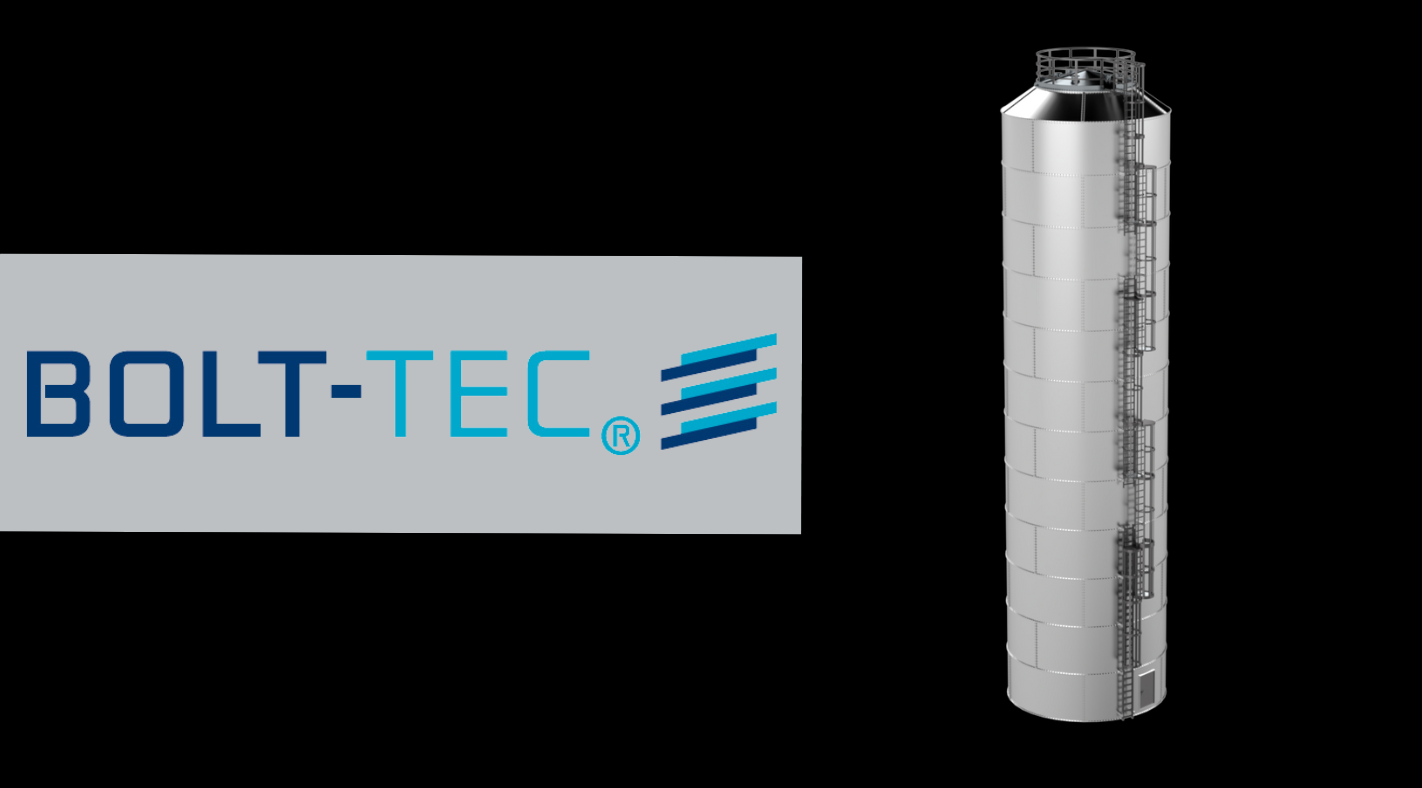

Bolt-Tec Silo. Simply smarter.

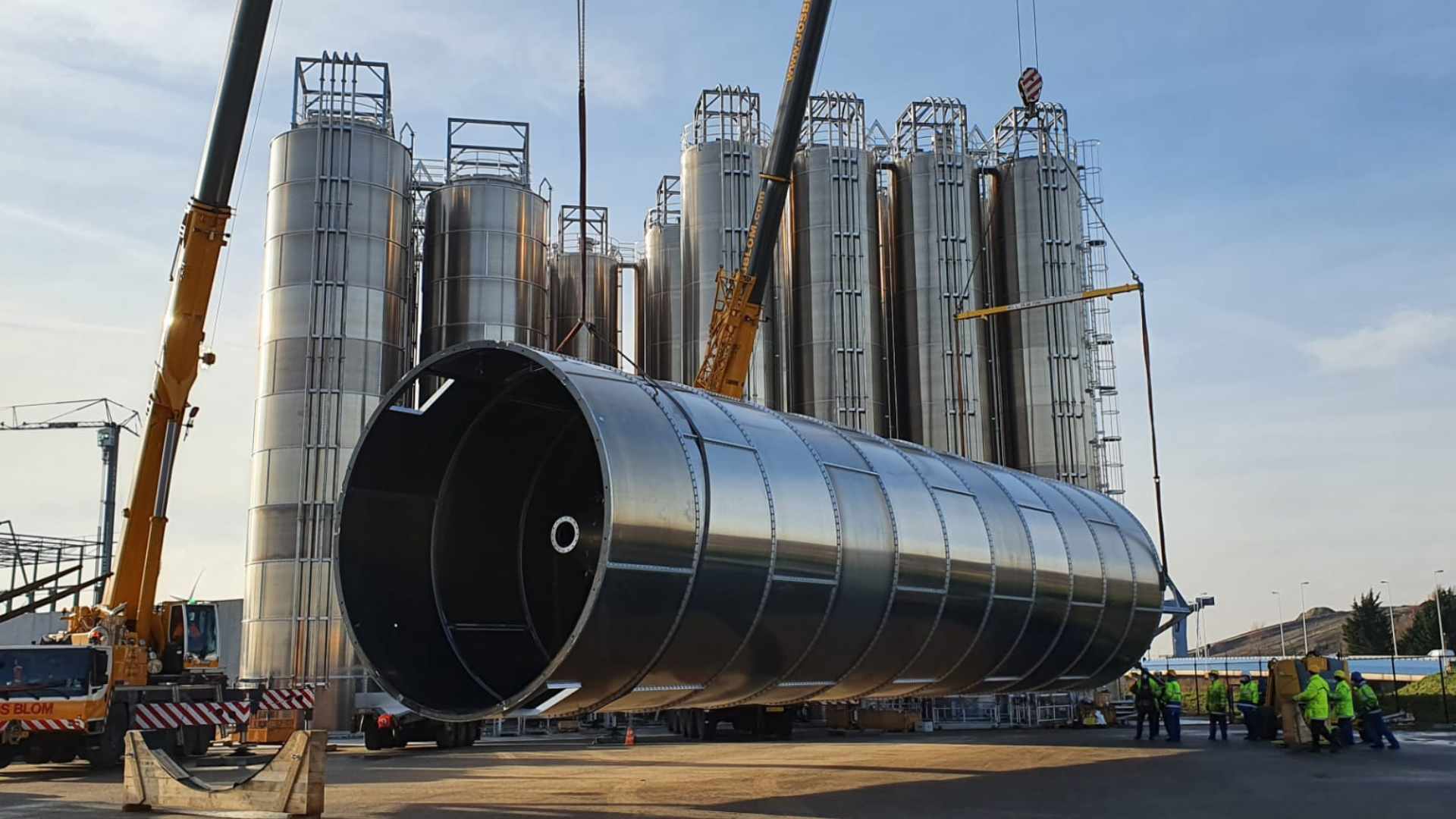

The Bolt-Tec Silo from Zeppelin Systems is delivered prefabricated, bolted on site and can be relocated at any time. It has a modular design and can therefore be extended at a later date. The shock-free, unique and patented bolting technology avoids product residue and thus revolutionizes the storage of bulk materials. The result: perfect product quality. We Create Solutions!
Special Highlights:
100% MORE FLEXIBLE THANKS TO MODULARITY
75% LOWER TRANSPORT RISK
100% SAFER PRODUCT DISCHARGE
50% LOWER TOTAL COST
And additionally:

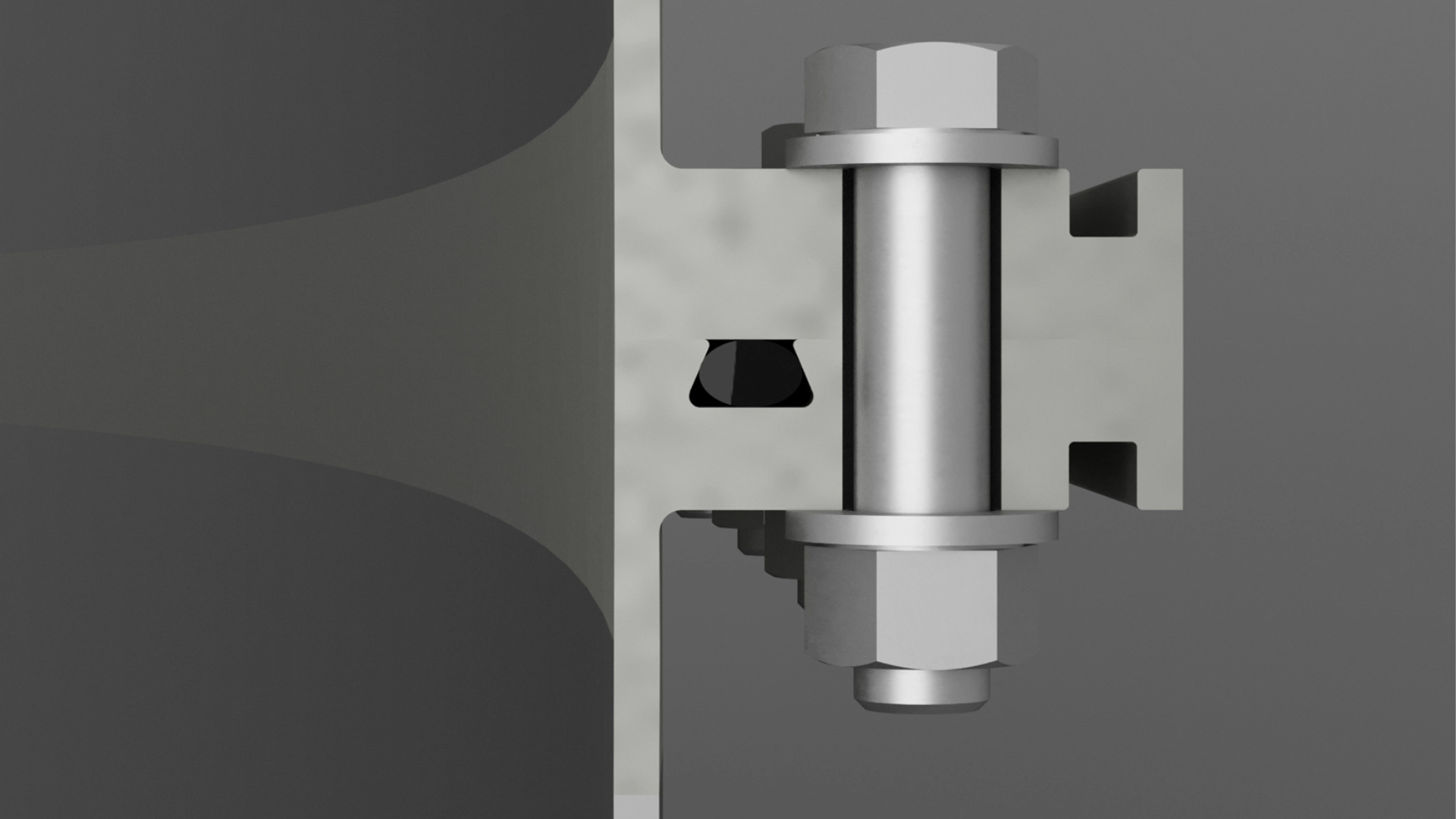

Assembly in record time thanks to innovative Bolt-Tec bolting technology
Leasing options available
- Convincing design
- Exceptional quality
- 100% safety
- Unique performance
- 360 degree service
Technical Specifications at a Glance
| Diameters |
|
|
| Volumes | 64 m³ to 1,100 m³ | |
Silo heights (without roof) |
approx. 8 m - 35 m | |
| Roof pitch |
|
|
| Cone opening angle |
|
|
| Design pressure | - 5 to +45 mbar (g) | |
| Mechanical design temperature | -20°C to +50°C | |
| Silo segment height | 2,000 mm | |
| Material | aluminium | |
| Base skirt |
|
|
| Sealing |
|
|
| Installation site |
|
|
| Bulk material types |
|
|
| Silo type |
|
Accessory Options
| Silo control | Zeppelin SCS350 available with
|
|
| Weighing | available on pressure load cells | |
Discharge aids |
|
|
| Filter | hose or pleated cartridges |
|
| Fill level indicator | rotating paddle detector, silot or radar |
|
| Explosion protection | bursting disks | |
Doors |
various heights |
|
| Filling pipes | various pipe diameters (e.g., DN80/DN100) | |
| Manholes | roof or shell | |
| Inspection |
|
|
| Attachments |
|
