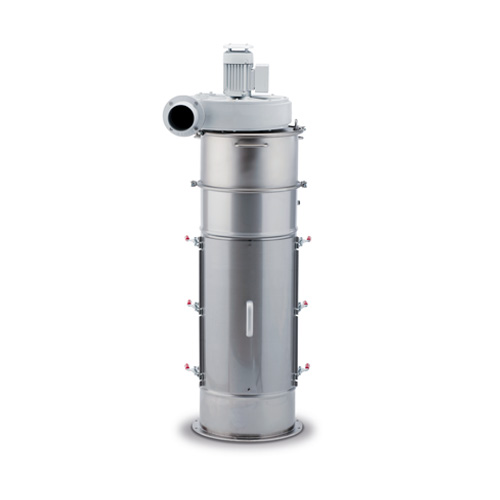

Fine dust particle ventilation filter for use as a bin vent filter in a modular system that includes the appropriate number of anti-static filter cartridges as corresponds to the type, on a robust stainless steel (1.4301) base plate
Filter elements can be easily replaced from underneath
Cylindrical stainless steel (1.4301) filter housing, with maintenance port for installation and removal of filter cartridges on the untreated gas side
Removable filter head as clean gas chamber with air jet pipes (blasted ceramic)
Compressed air reservoir unit with integrated diaphragm valves and pressure reducer
Controller with integrated 24 V DC magnetic pilot valves
De-dusting with purified, de-oiled air compressed up to 6 bar
Container connector in flange design
JEB jet ventilation filter: Filter cartridges made from anti-static polyester fleece with PTFE membrane or aluminum coating (dust class “M” in accordance with DIN EN 60335-2-69)
Design compliant with ATEX 2014/34/EU for use in Zone 22 areas
Operating pressure between 0 bar and +0.1 bar (g)
Temperature range -20 to +60°C
Options:
Differential pressure measurement for de-dusting of filter elements as needed
